22.45 MGPY ETHANOL PLANT
Lacassine, LA
Processing: Praj Schneider Engineering
General Contractor :
This facility includes the following area:
- Area 1010 Piperacks
- Area 1100 HTM/ Molasses
- Area 1300 Fermentation
- Area 1400 Distillation
- Area 1500 Evaporation
- Area 1700 Ethanol Storage & Loadout
- Area 1900 MCC Buillding & Misc. Tanks

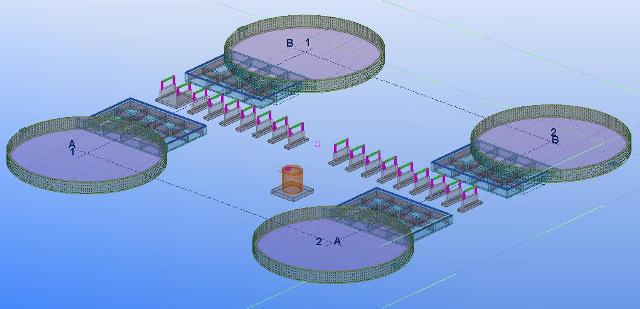

(Click picture to browse the TEKLA model.
Internet Explorer 6.0 or higher is required to browse model)
Note: The design work in this project is currently in progress. The models are incomplete and are being periodically updated
Keywords: Ethanol, Industrial, Steel, Concrete, Masonry, Insulated Metal Panels, Masonry, CMU-Concrete Block, Pre-Engineered Buildings, Foundations, Pipe Support, Pile Foundations
